Titan® Large Bulk – Industrial
- Capacities: 1,500 up to 13,000 gallons
- 250 or 500 psig working pressures (other sizes and service pressure models are also available)
- Available for liquid Oxygen, Nitrogen, or Argon service
- Combination pressure building/economizer regulator
- Standard dual relief system
- Backed by competitive 5-year warranty
- Telemetry-ready — CylConnect® remote monitoring systems give instant out-of-stock alerts and forecasts when liquid gas gets low
Description
Titan® Large Bulk – Industrial Cryogenic Tanks
Titan® Large Bulk Industrial cryogenic tanks are engineered for exceptional performance, durability, versatility, & value. Available for liquid Oxygen, Nitrogen, or Argon service.
Models are available in capacities of 1,500 up to 13,000 gallon sizes and in 250 or 500 psig working pressures (other sizes and service pressure models are also available).
Titan® Industrial Large Bulk models:
(See specifications in separate tab.)
- 1,500 Gallon
- 3,000 Gallon
- 6,000 Gallon
- 9,000 Gallon
- 11,000 Gallon
- 13,000 Gallon
- See also: Cylinder Filling Technology Large Bulk Tanks
High Performance
- Vacuum-jacketed and super insulated for reduced product losses and extended hold times
- Combination pressure building/economizer regulator
- Standard dual relief system
Durability and Design
- Welded stainless steel piping
- Built to ASME Sec. VIII, Div. 1 Specifications
- Plumbing in accordance with ASME B31.3
- Extended bonnet RegO® control valves
- Backed by competitive 5-year warranty
- Telemetry-ready — CylConnect® remote monitoring systems give instant out-of-stock alerts and forecasts when liquid gas gets low
Specifications

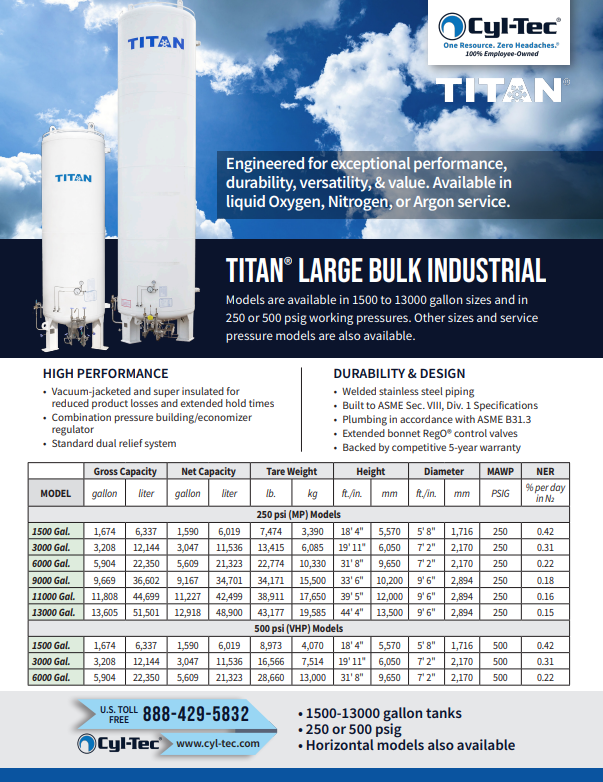

Titan® Large Bulk - Industrial
| Model | Gross Capacity | Net Capacity | Tare Weight | Height | Diameter | MAWP | NER |
|---|---|---|---|---|---|---|---|
| gal (liters) | gal (liters) | lb (kg) | ft./in. (mm) | ft./in. (mm) | PSIG | % per day in N2 | |
| 1,500 gal. | 1674 (6337) | 1590 (6019) | 7170 (3250) | 18' 4" (5570) | 5' 8" (1716) | 250 | 0.42 |
| 1,500 gal. | 1674 (6337) | 1590 (6019) | 8970 (4070) | 18' 4" (5570) | 5' 8" (1716) | 500 | 0.42 |
| 3,000 gal. | 3208 (12144) | 3047 (11536) | 13800 (6260) | 19' 11" (6050) | 7' 2" (2170) | 250 | 0.31 |
| 3,000 gal. | 3208 (12144) | 3047 (11536) | 16580 (7520) | 19' 11" (6050) | 7' 2" (2170) | 500 | 0.31 |
| 6,000 gal. | 5904 (22350) | 5609 (21323) | 23200 (10520) | 31' 8" (9650) | 7' 2" (2170) | 250 | 0.22 |
| 6,000 gal. | 5904 (22350) | 5609 (21323) | 28660 (13000) | 31' 8" (9650) | 7' 2" (2170) | 500 | 0.22 |
| 9,000 gal. | 9669 (36602) | 9167 (34701) | 28450 (12900) | 33' 6" (10200) | 9' 6" (2894) | 250 | 0.18 |
| 11,000 gal. | 11808 (44699) | 11227 (42499) | 33730 (15300) | 39' 5" (12000) | 9' 6" (2894) | 250 | 0.16 |
| 13,000 gal. | 13605 (51501) | 12918 (48900) | 38150 (17300) | 44' 4" (13500) | 9' 6" (2894) | 250 | 0.15 |
