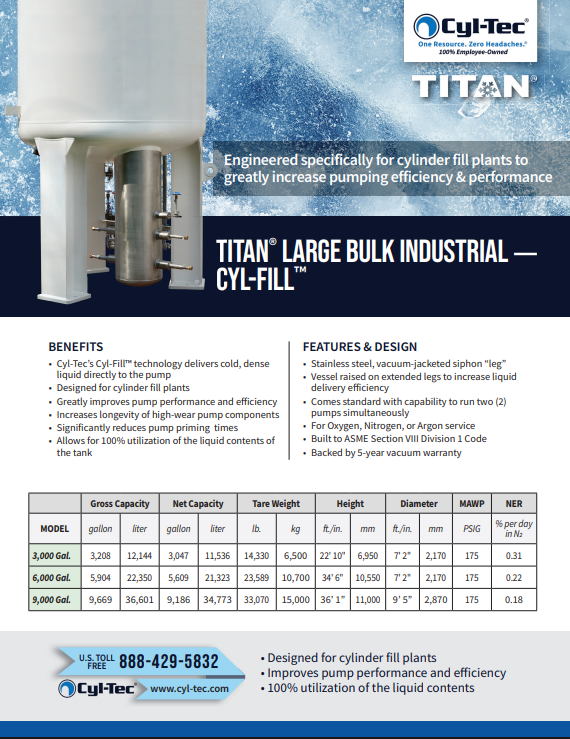

Titan® Large Bulk – Cyl-Fill™ Technology
- Stainless steel, vacuum-jacketed siphon “leg”
- Vessel raised on extended legs to increase liquid delivery efficiency
- Comes standard with capability to run two (2) pumps simultaneously
- For Oxygen, Nitrogen, or Argon service
- Built to ASME Section VIII Division 1 Code
- Backed by 5-year vacuum warranty
Description
Titan® Large Bulk – Cyl-Fill™ Technology
Titan® large bulk storage tanks built with Cyl-Fill™ Technology are engineered specifically for cylinder fill plants to greatly improve pumping efficiency & performance. Used for Oxygen, Nitrogen, or Argon service, Cyl-Fill™ bulk storage tanks increase the longevity of high-wear pump components.
Engineered to ASME Section VIII Division 1 Code and backed by Cyl-Tec’s 5-year vacuum warranty, Titan Cyl-Fill™ Technology bulk storage tanks are designed to allow for 100% utilization of the liquid contents. The extended siphon “leg” or “pod” delivers the coldest, densest liquid directly to the fill plant pump. Comes standard with the capability to run two (2) pumps simultaneously.
Cyl-Fill™ Technology Bulk Storage Tank Models:
(See separate tab for specifications.)
- 3000 gallon
- 6000 gallon
- Larger models available upon request
Benefits
- Cyl-Tec’s Cyl-Fill™ Technology delivers cold, dense liquid directly to the pump
- Designed for cylinder fill plants
- Greatly improves pump performance and efficiency
- Increases longevity of high-wear pump components
- Significantly reduces pump priming times
- Allows for 100% utilization of the liquid contents of the tank
Features & Design
- Stainless steel, vacuum-jacketed siphon “leg”
- Vessel raised on extended legs to increase liquid delivery efficiency
- Comes standard with capability to run two (2) pumps simultaneously
- For Oxygen, Nitrogen, or Argon service
- Built to ASME Section VIII Division 1 Code
- Backed by 5-year vacuum warranty
Specifications
Titan® Large Bulk - Cylinder Filling
Model | Gross Capacity | Net Capacity | Tare Weight | Height | Diameter | MAWP | NER |
---|---|---|---|---|---|---|---|
gal (liters) | gal (liters) | lb (kg) | ft./in. (mm) | ft./in. (mm) | PSIG | % per day in N2 | |
3,000 gal. | 3208 (12144) | 3047 (11536) | 14000 (6350) | 22' 10" (6950) | 7' 2" (2170) | 175 | 0.31 |
6,000 gal. | 5904 (22350) | 5609 (21323) | 23500 (10659) | 34' 6" (10550) | 7' 2" (2170) | 175 | 0.22 |
