Titan® Large Bulk – CO2
- Heavy-duty, dent-resistant, steel-alloy outer jacket
- Vacuum-jacketed design eliminates the need for mechanical refrigeration
- Available in 6-ton up to 50-ton capacity (larger capacities upon request)
- Comes equipped with standard features of re-condensing coils, and extra liquid & vapor lines
- Telemetry-ready — CylConnect® remote monitoring systems give instant out-of-stock alerts and forecasts when CO2 gets low
Description

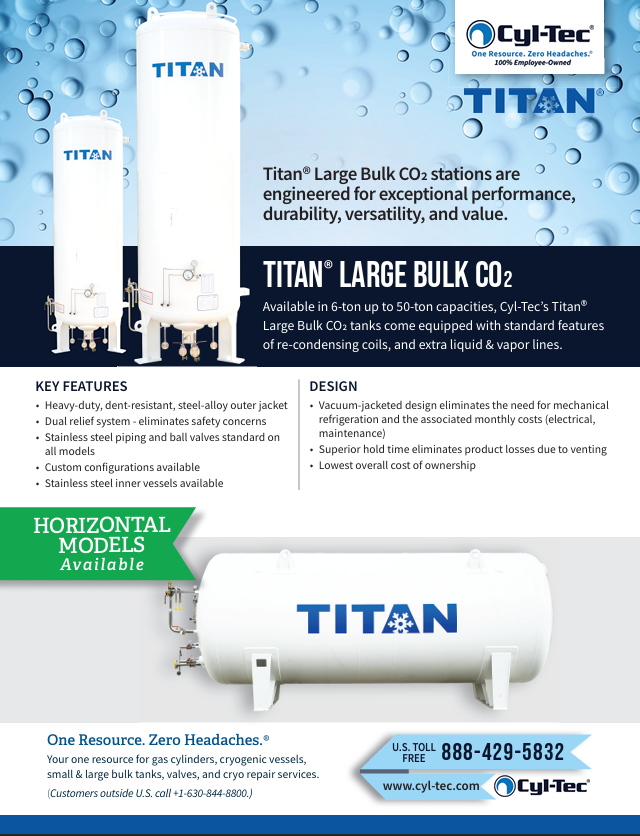

Titan® Large Bulk – CO2 Cryogenic Tanks
Titan® Cryogenic Large Bulk CO2 stations are engineered for exceptional performance, durability, versatility, & value. Available in 6-ton to 50-ton capacity (larger capacities upon request).
Unlike competitor models, Cyl-Tec’s Titan® Cryogenic Large Bulk CO2 comes equipped with standard features of a stainless steel-alloy outer jacket, re-condensing coils, and extra liquid & vapor lines.
Titan® CO2 Large Bulk models:
(See specifications in separate tab.)
- 6 Ton
- 14 Ton
- 30 Ton
- 50 Ton
Features
- Heavy-duty, dent-resistant, steel-alloy outer jacket
- Dual relief system – eliminates safety concerns
- Stainless steel piping and ball valves standard on all models
- Custom configurations available
- Stainless steel inner vessels available
Design
- The vacuum-jacketed design eliminates the need for mechanical refrigeration and the associated monthly costs of electrical and maintenance
- Superior hold time eliminates product losses due to venting
- Lowest overall cost of ownership
- Extra large capacity and horizontal models are available
- Telemetry-ready — CylConnect® remote monitoring systems give instant out-of-stock alerts and forecasts when CO2 gets low
Specifications
Titan® Large Bulk - CO2
| Model | Horizontal / Vertical | Gross Capacity (CO2) | Net Capacity (CO2) | MAWP | Tare Weight | Length/Height | Diameter |
|---|---|---|---|---|---|---|---|
| U.S. ton (metric tonne) | U.S. ton (metric tonne) | psig (bar) | lb. (kg) | ft./in. (mm) | ft./in. (mm) | ||
| 6 Ton | H | 5.9 (5.4) | 5.6 (5.1) | 333 (23) | 11,013 (4,995) | 17' 5" (5,309) | 5' 8" (1,727) |
| 6 Ton | V | 5.9 (5.4) | 5.6 (5.1) | 333 (23) | 10,970 (4,976) | 18' (5,486) | 5' 8" (1,727) |
| 14 Ton | H | 14 (12.7) | 13.3 (12.0) | 333 (23) | 22,844 (10,362) | 21' (6,401) | 7' 4" (2,235) |
| 14 Ton | V | 14 (12.7) | 13.3 (12.0) | 333 (23) | 23,064 (10,462) | 21' 9" (6,629) | 7' 4" (2,235) |
| 30 Ton | H | 30.5 (27.7) | 29 (26.3) | 333 (23) | 45,864 (20,804) | 29' 5" (8,966) | 8' 6" (2,591) |
| 30 Ton | V | 30.5 (27.7) | 29 (26.3) | 333 (23) | 44,541 (20,203) | 30' 9" (9,373) | 8' 7" (2,616) |
| 50 Ton | H | 50.8 (46) | 48.2 (43.7) | 333 (23) | 69,524 (31,536) | 36' 9" (11,201) | 9' 6" (2,896) |
| 50 Ton | V | 50.8 (46) | 48.2 (43.7) | 333 (23) | 69,017 (31,306) | 37' 6" (11,430) | 9' 7" (2,921) |
